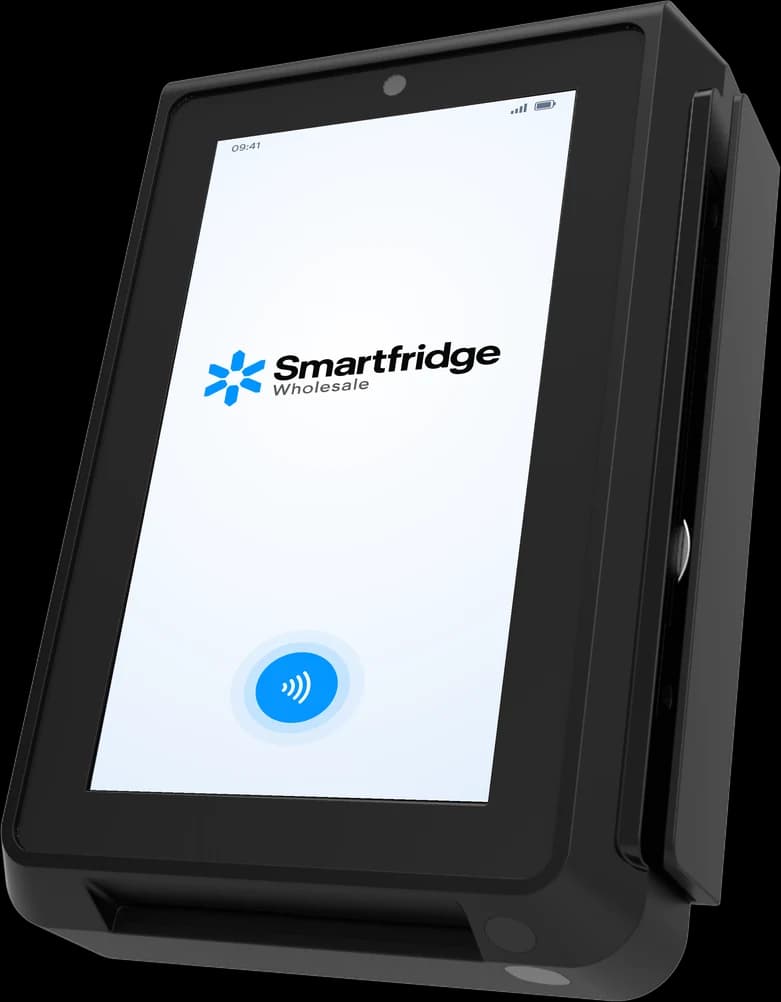

PAX IM30 with product display

The self-service terminal that shows what's in your fridge

The premium alternative to the standard Stripe terminal. Its 5-inch touchscreen shows customers the products in the fridge, with prices, before they tap to open the door.

Display: 5" HD
Payments: Card, phone & QR
Connectivity: 4G, Ethernet, Wi-Fi
Protection: IP65 / IK09

Fits every Smart Fridge
Replaces the standard Stripe terminal

Customers pay withVisaMastercardBancontactApple PayGoogle Pay

Download the product sheetPDF with all specifications, photos and dimensions

How it sells

Tap. Open. Take. Done.

The PAX IM30 is an all-in-one Android terminal built for unattended sales. Customers see what's in the fridge on the screen, pay by card, phone or QR code, and the door opens. It connects over 4G, Ethernet or Wi-Fi and works with the acquirer of your choice.

01
Tap
The customer taps a card or phone on the terminal.
02
Open
The door unlocks straight away.
03
Take
They take what they want and close the door.
04
Charged automatically
Only what was taken is charged. No cashier needed.

Why operators choose it

Everything you need to sell without staff.

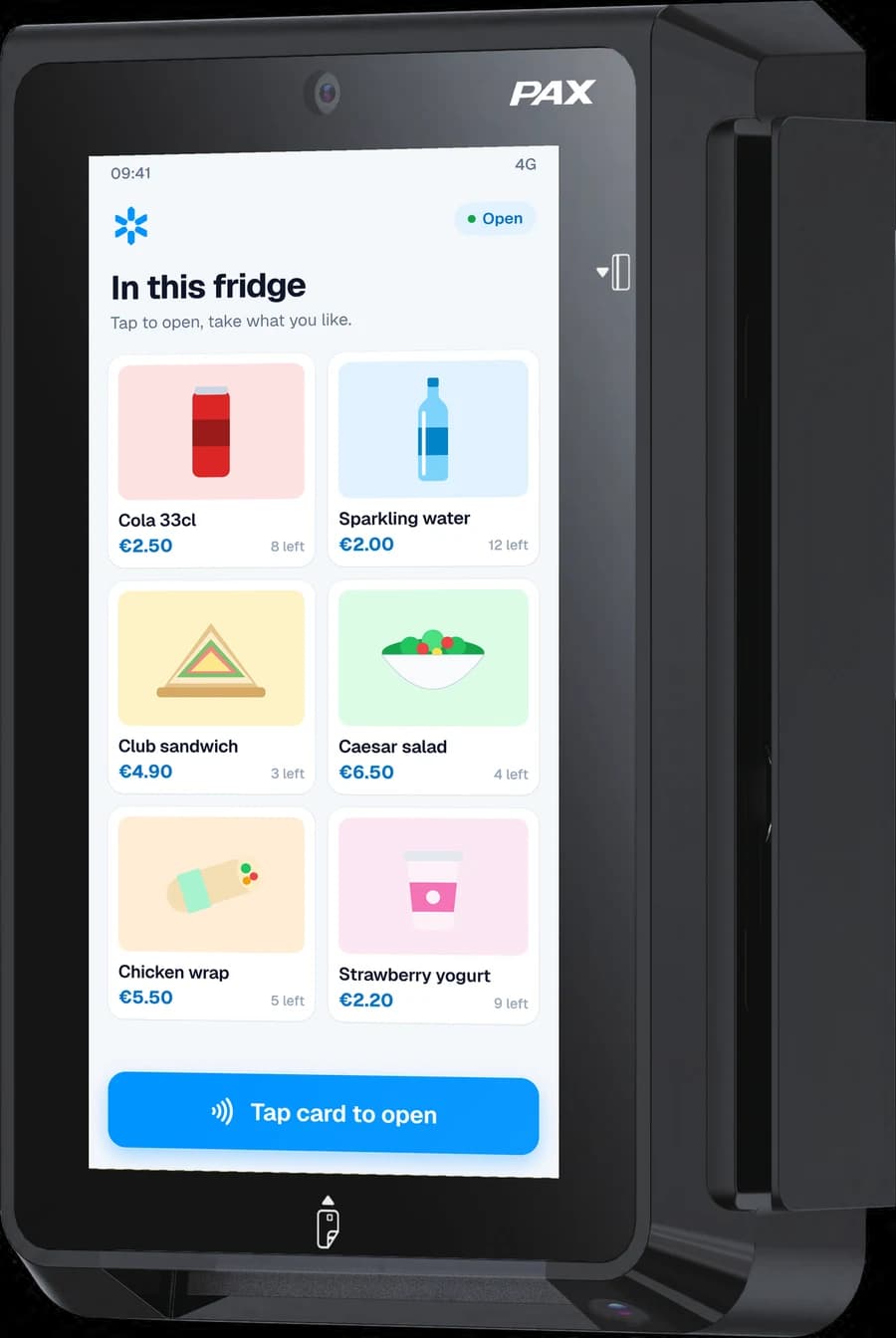

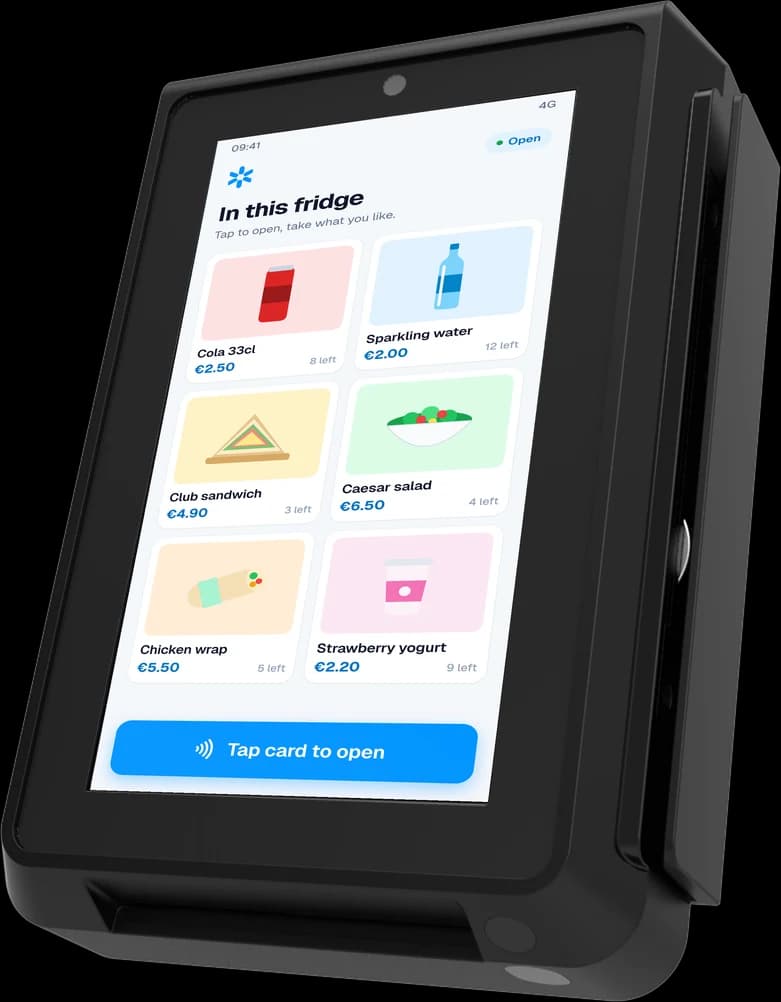

See what's in the fridge

The screen shows the products in the fridge with their prices, so customers know what's on offer before they tap and open the door.

Your brand on the screen

A 5-inch HD touchscreen that lights up when someone walks by. Show your logo, your products and your promotions.

Every way to pay

Contactless cards, chip & PIN, magnetic stripe, Apple Pay and Google Pay. The built-in scanner reads QR codes and vouchers.

Your own acquirer

Connects to the payment provider of your choice, so you can keep your existing contract and rates.

Always connected

4G, Ethernet and dual-band Wi-Fi, so it doesn't depend on a phone or Bluetooth link.

Built for unattended use

PCI PTS 6 certified, IP65 water- and dust-proof and IK09 impact-resistant, with a metal back casing.

Specifications

Product sheet (PDF)

Terminal

Model: PAX IM30 (PCI 6)
Operating system: PayDroid, powered by Android 10
Processor: Quad-core ARM Cortex-A53, 1.6 GHz
Memory: 8 GB flash + 2 GB LPDDR4 RAM
Display: 5" IPS touchscreen, 720 × 1280
Camera: 2 MP, front-facing
QR scanner: 2 MP, reads 1D and 2D codes
Audio: 1 speaker
Keys: 1 reset key, 1 service key
Fits: Every Smart Fridge (900, Tabletop and Freezer), instead of the Stripe WisePad 3

Payment

Card readers: Chip & PIN, contactless, magnetic stripe
Payment methods: Contactless, chip & PIN, Apple Pay, Google Pay, QR codes
Acquirer: Your choice
Security: PCI PTS 6.x SRED, EMV L1 & L2, EMV Contactless L1
Card schemes: Visa payWave, Mastercard contactless, American Express ExpressPay, Discover D-PAS, JCB J/Speedy, UnionPay QuickPass, Interac Flash
SAM slots: 2 (optional 4)

Connectivity & power

Communication: 4G, Ethernet, dual-band Wi-Fi, Bluetooth 5.0

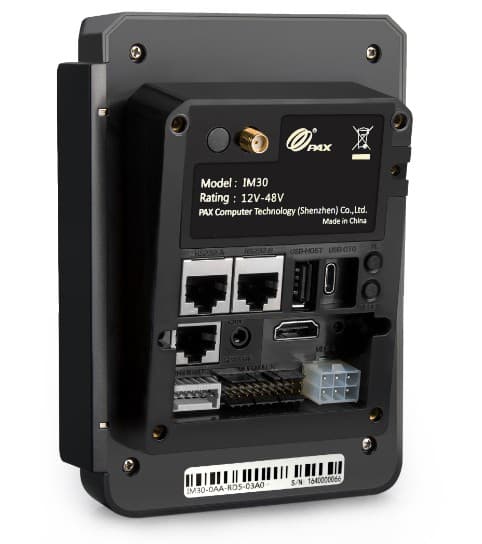

Ports: 2 × RS232, USB host, USB OTG, LAN, MDB slave, MDB master, HDMI, digital I/O, microphone & speaker
Optional: SMA antenna connector, SIM slot, GPS
Power supply: 7–48 V DC via MDB slave, RS232 or digital I/O; 24 V DC via JVMA
